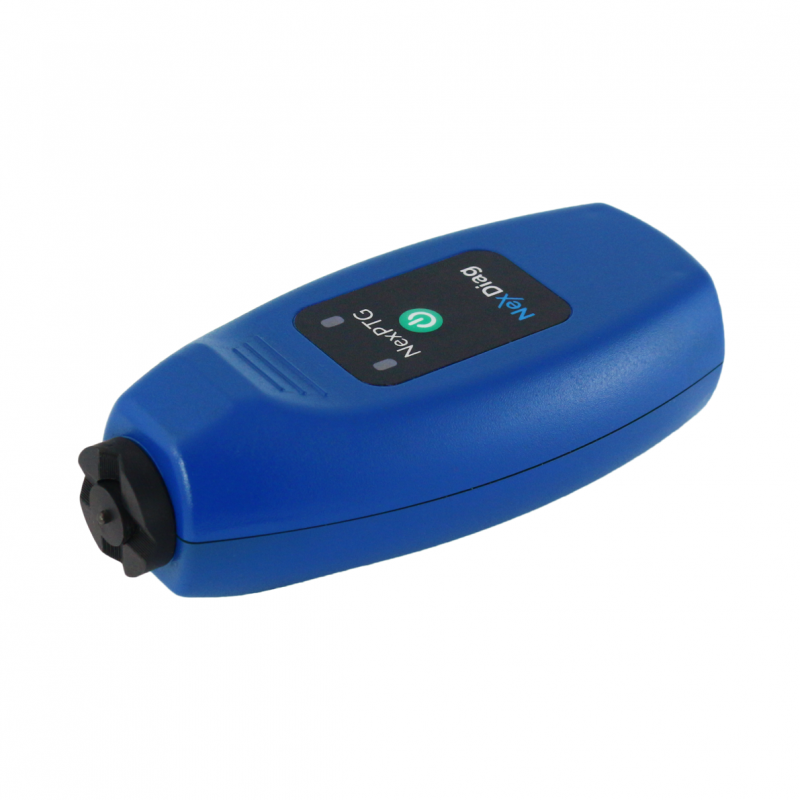

An advanced version of the NexPTG paint thickness gauge, enabling fast, accurate, and intuitive vehicle testing. The Professional version features a movable head for precise measurements on concave and convex elements.
- Test substrate: steel [Fe] / galvanized steel [Fe + Zn] / aluminum [Al]
- Recognized substrate types: [Fe] / [Fe + Zn] / [Al]
- Measuring range: 0 - 2500 μm (0 - 98.43 mils)
- Probe type / probe tip: movable / spherical
- Possible measurement on curvatures (profiled probe housing)
- Measurement resolution: 1 μm (0.04 mils)
- Measurement memory: up to 4000 items
- Wireless transmission: Bluetooth 4.0 LE
- SAPL Extended: paint coating analysis system
- Proposed measuring points
- Creating and exporting measurement history
- Creating and exporting reports
- API communication
- Supported systems: iOS / Android
